A stylish and versatile wall mount touch screen designed specifically for enterprise room scheduling applications. Integrates directly with various room scheduling services. Installs quickly and easily, with simple web-based configuration and cloud-based management, and requires no control system or programming.

Crestron® TSS‑10 series room scheduling touch screens enhance and simplify scheduling meeting rooms and spaces. The touch screens can be installed at the entrance to each room and integrate seamlessly with a variety of popular scheduling services to provide an indication of the room availability and a view of its schedule.

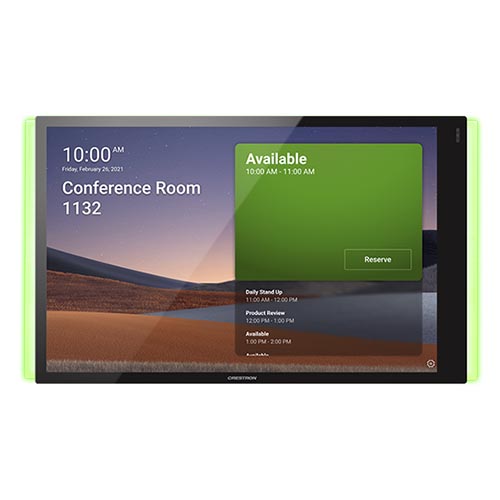

10.1 in. Room Scheduling Touch Screen

TSS-10-B-S

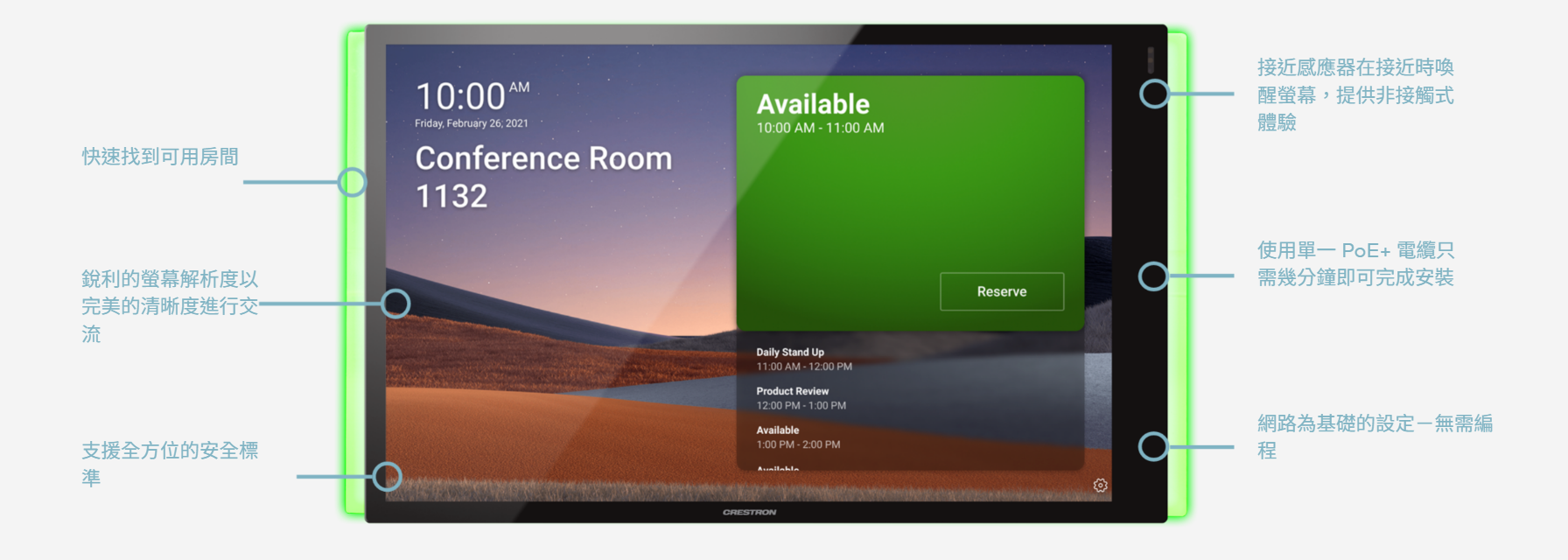

Key Features

• Provides a stylish wall mount touch screen designed specifically for enterprise room scheduling applications
• Delivers a superior and cost-effective alternative to the use of consumer tablet devices
• Integrates directly with various room scheduling services
• 10.1 in. (257 mm) widescreen capacitive touch screen display
• Standard US, UK, and Euro electrical box installation with additional mounting options available
• Single-wire high-speed PoE or PoE+ network connection
• Enterprise grade security
• Choice of white or black smooth finish
• Complete kits available including the touch screen, multisurface mount kit, and choice of a light bar, status indicator, or hallway sign

Power over Ethernet

Using PoE technology, the TSS‑10 gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. A Crestron PoE switch (CEN‑SWPOE‑16) offers a total networking solution with built‑in PoE for multiple touch screens.

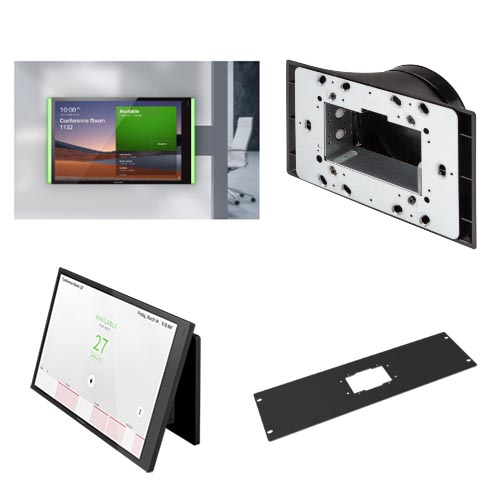

Versatile Mounting Options

Using the bracket provided, the TSS‑10 is easily installed over a 2‑gang or 3‑gang electrical box, or a 2‑gang European or UK electrical box. The same bracket allows for installation over a rectangular cutout in wooden paneling or furniture. When installed, the touch screen protrudes only 1/2 in. from the mounting surface and leaves no visible screws for an ultra clean appearance. A security latch option is included to deter unauthorized removal of the touch screen.

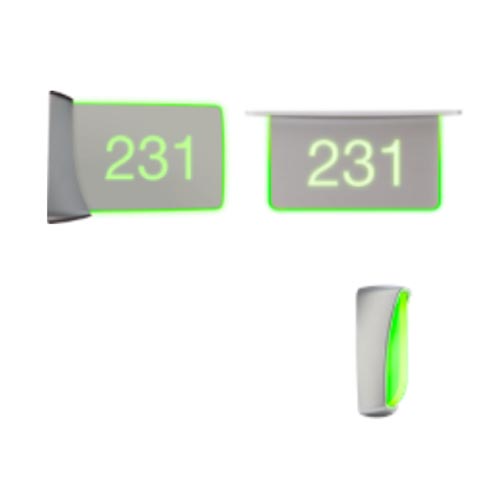

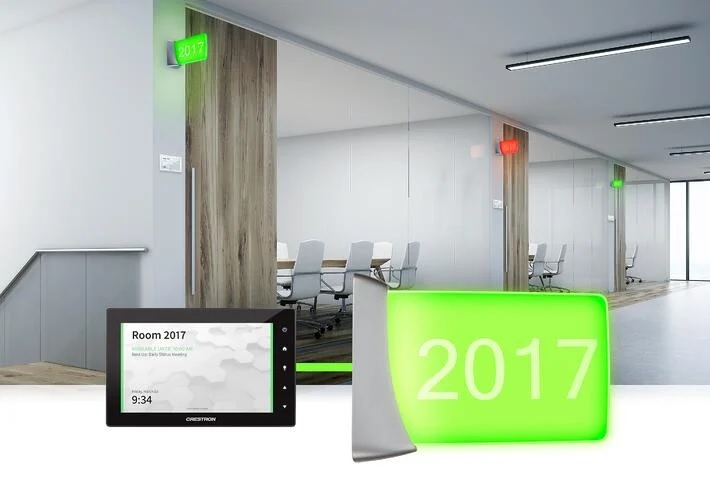

Room Availability Hallway Sign

SSC-102-EL：Ceiling Mount
SSW-102-EL：Wall Mount
 The two‑sided, gray acrylic sign face illuminates bright green or red to indicate the room availability status. The sign face is custom engravable with the room number, name, icon, or other designation.
